Configuration

Once the Mastercard Gateway extension is installed, follow these steps to access and configure it:

1. Access the Configuration Menu

OpenCart_Login_Page

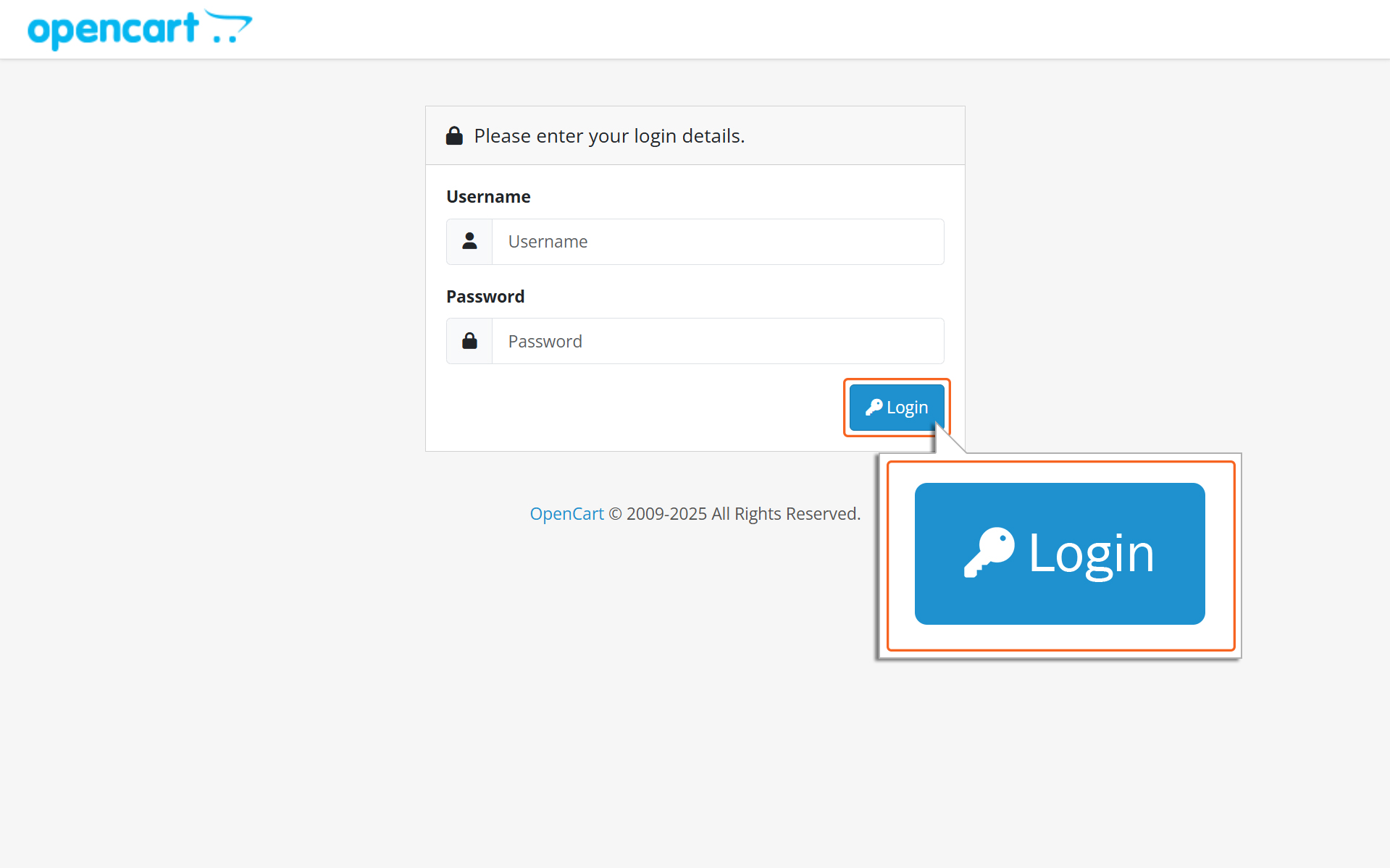

OpenCart Login Page
  • First, log in to your OpenCart Admin Panel.
Admin_dashboard

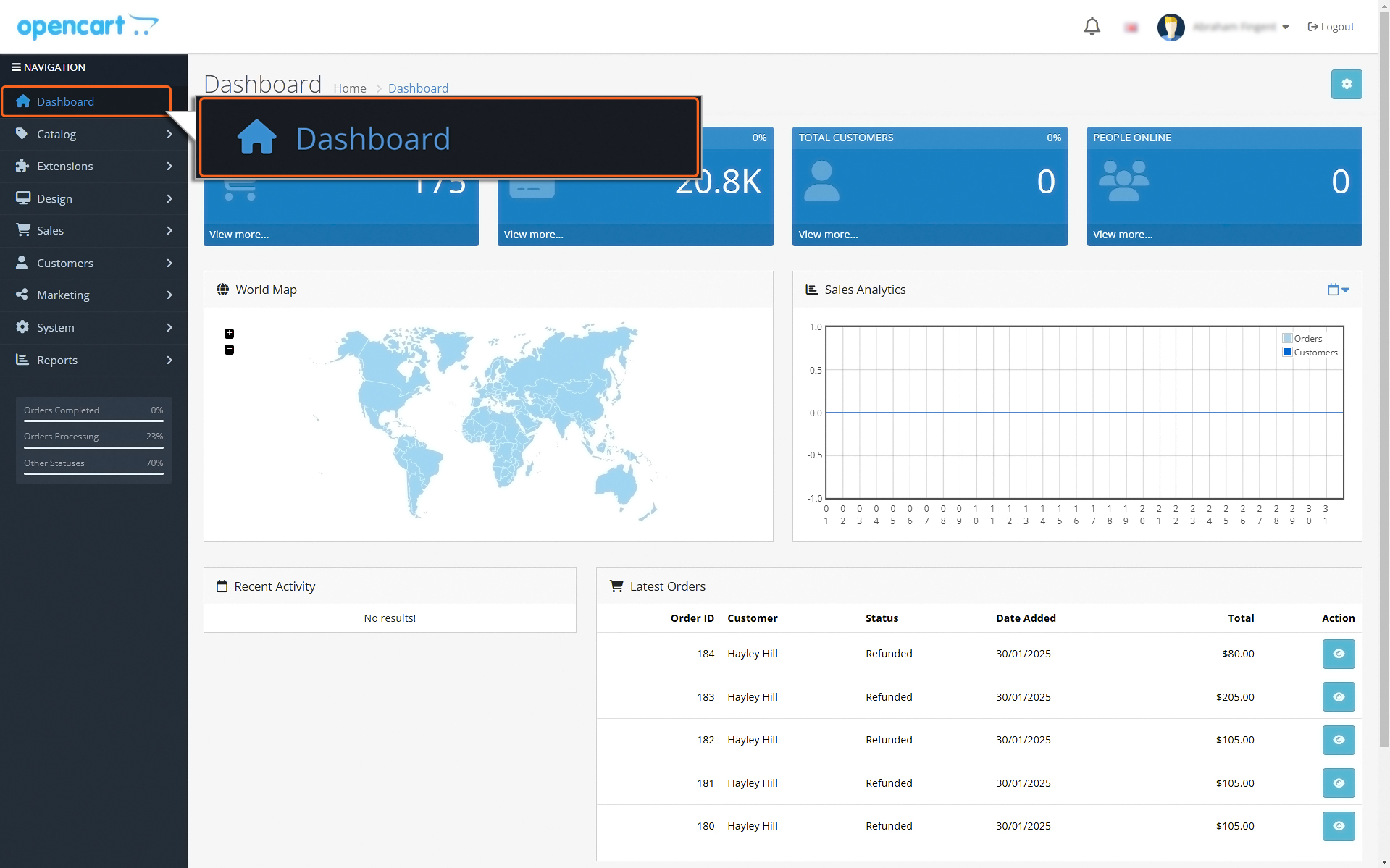

Admin dashboard
  • Once logged in, you will be redirected to the Admin dashboard.
Extensions__Extensions

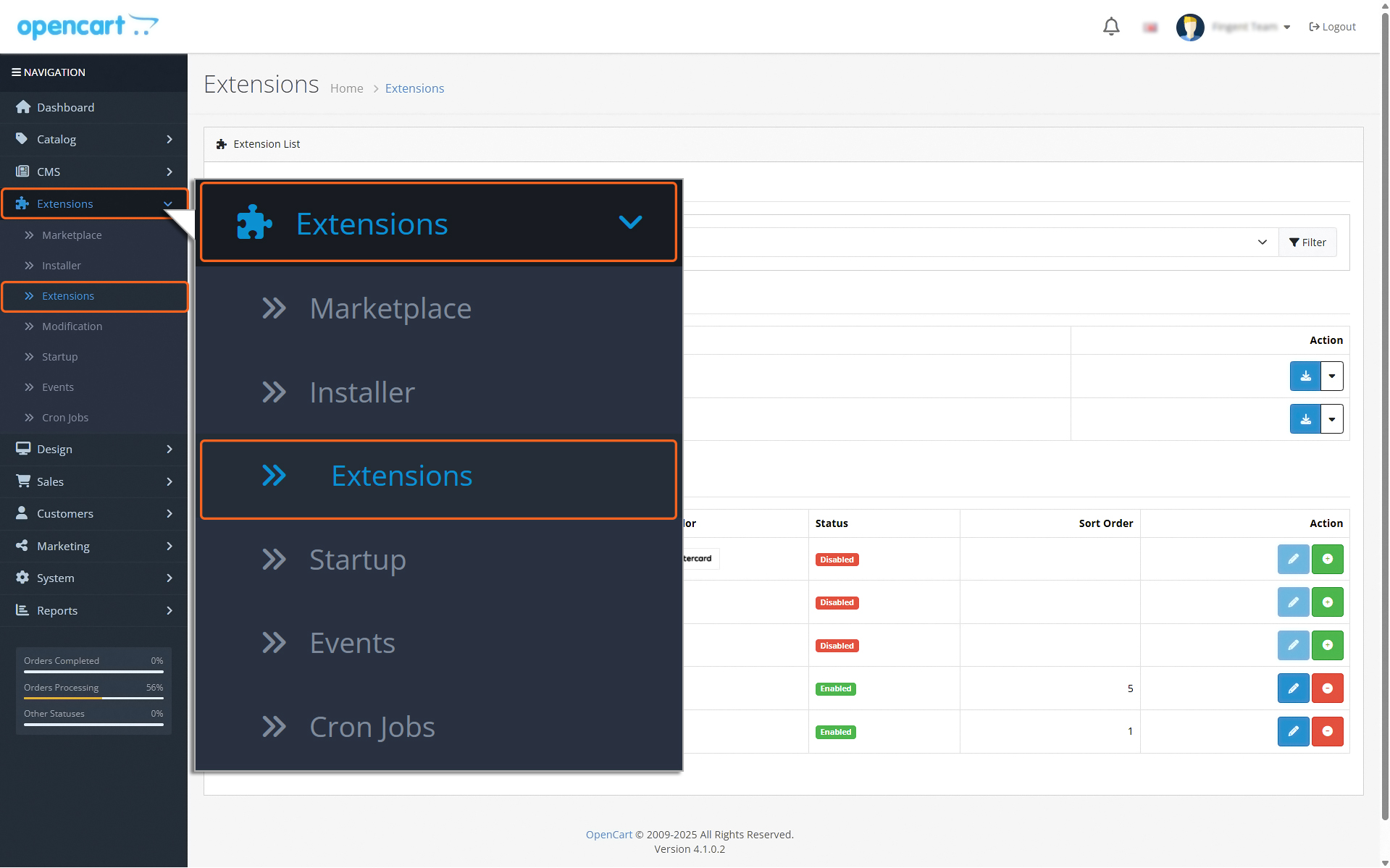

Extensions→ Extensions
Choose_the_extension_type

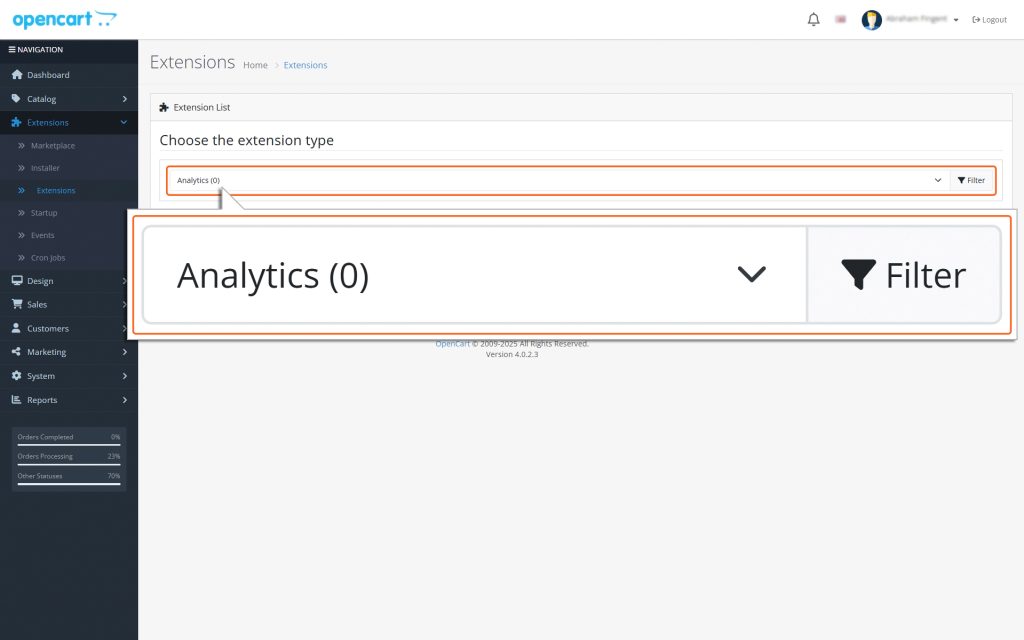

→ Choose the extension type
Payments-configuration

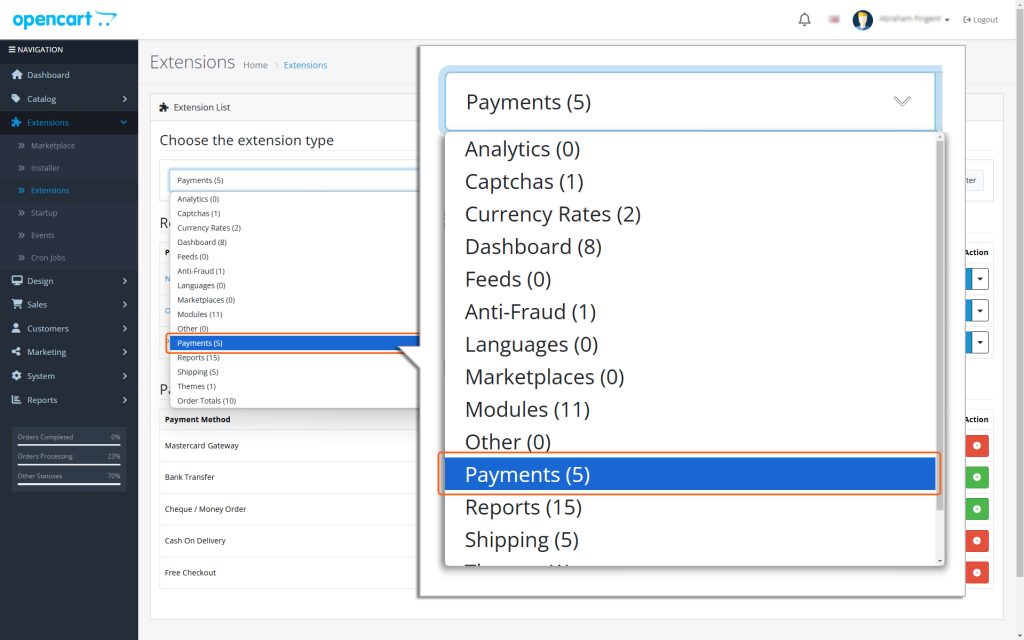

→ Payments

From the dashboard, navigate to the menu on the left side and follow this path:



Extensions → Extensions → Choose the extension type dropdown → Payments.



This is where you can set up and manage the payment methods for your store.

Install-MPGS-module

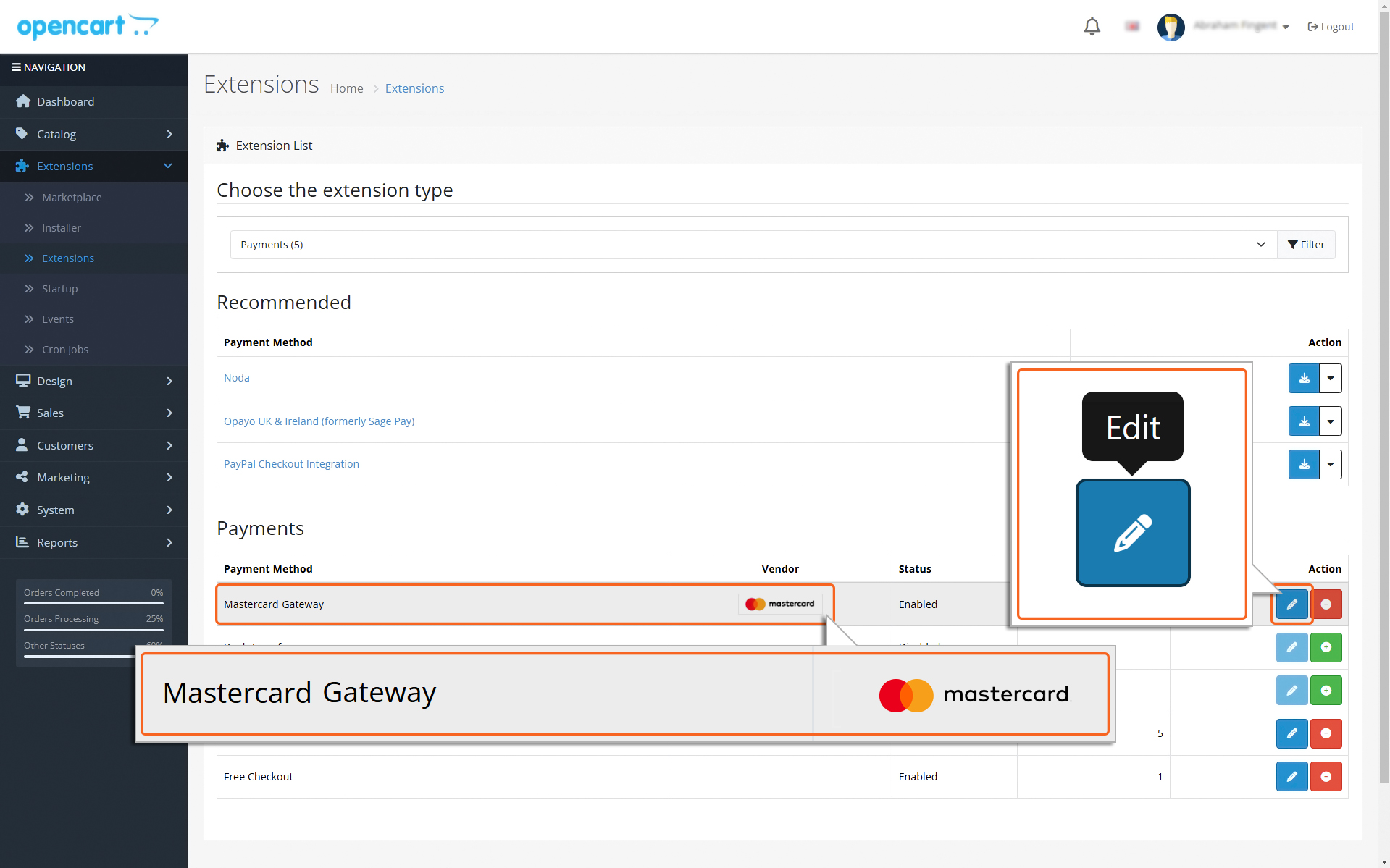

Mastercard Gateway

2. Locate the Mastercard Module

  • Scroll down the page until you find the module labeled Mastercard Gateway.
Configuration-opencart

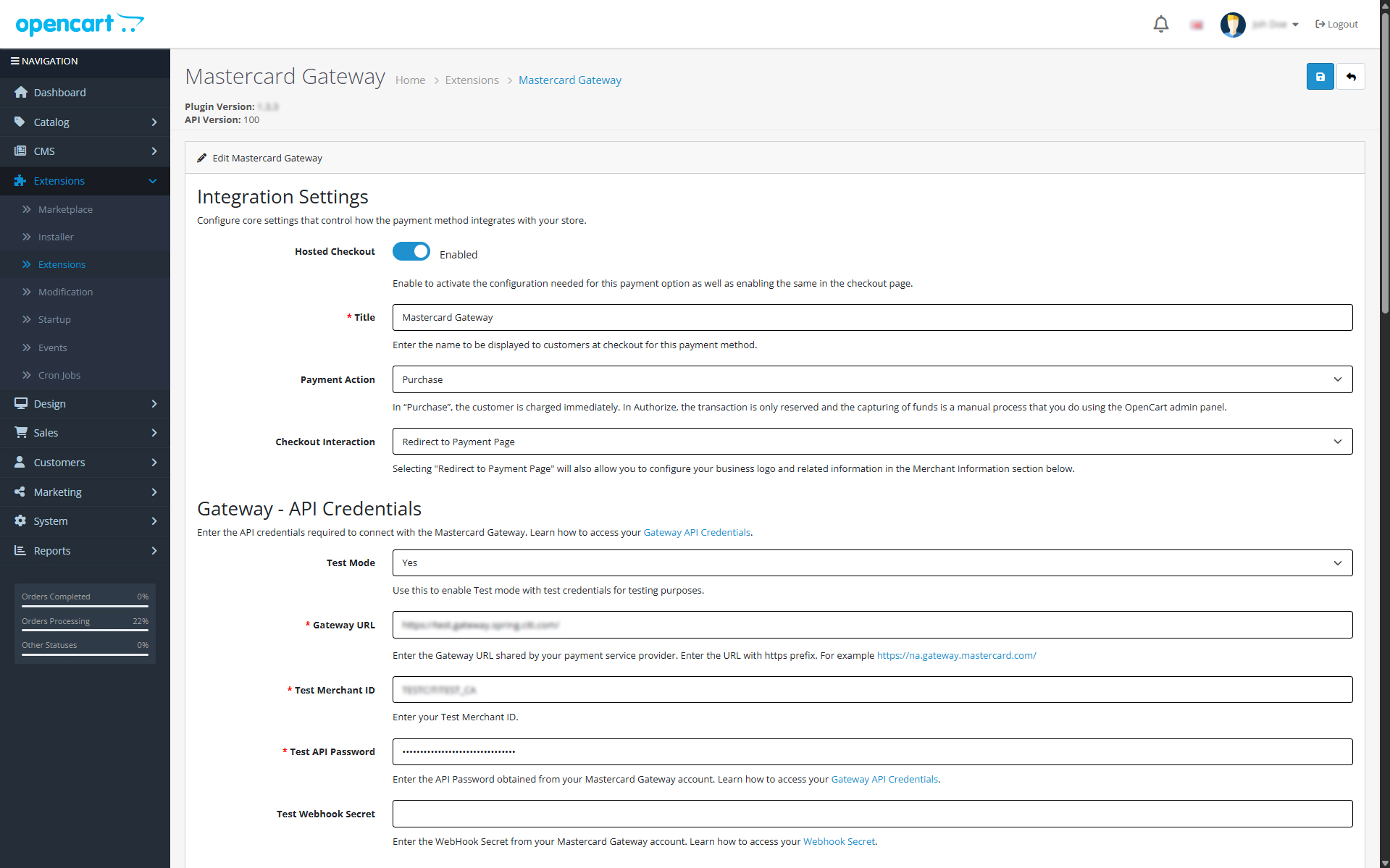

Mastercard Gateway Options

3. Configure the Extension

  • Click the ‘Pencil’ icon next to the Mastercard Gateway module.
  • In the Mastercard module, you will have the option to configure the Hosted Checkout.
